Potential fields offer a computationally efficient method for real-time motion planning and obstacle avoidance in robotic systems. By modeling the robot’s environment as a field of attractive and repulsive forces, potential field methods enable robots to navigate complex environments while avoiding collisions. This approach is particularly useful for robotic manipulators operating in complex obstacle-rich environments, where traditional motion planning algorithms may struggle to provide real-time solutions.

This project offers a potential field based motion planning library for robotic manipulators, written in C++ and compatible with ROS2. Utilizing attractive and repulsive force generation in SE(3), whole-body obstacle avoidance using FCL collision geometry, users only need to submit their robot’s URDF and inverse kinematics solvers to plan smooth, collision-free trajectories. The library offers two main methods for motion planning:

  1. SE(3) Task-Space Planner: Integrates the planning frame as a 6D pose through the potential field, using the robot’s inverse kinematics function to generate joint position and velocity trajectories.

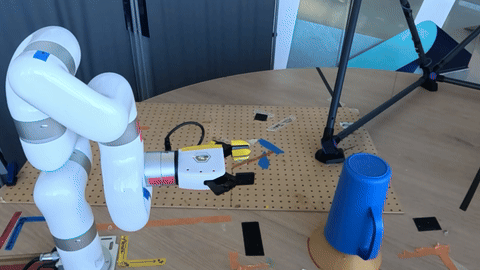

Xarm-7 Task-Space Obstacle Avoidance Path through Obstacle-Rich Environment

Example motion of Xarm-7 using task-space planning and end-effector velocity control

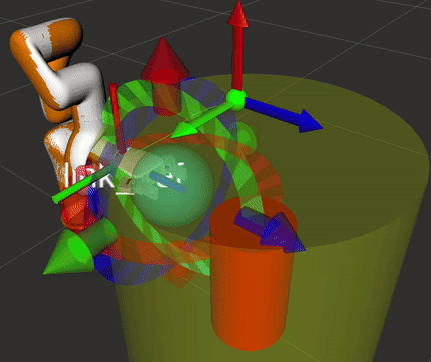

Example path through obstacle-rich environment with translational and rotational attraction

  1. Whole-Body Velocity Planner: Computes repulsive forces throughout the robot’s links and combines them with attractive forces at the end-effector to produce a joint velocity trajectory that avoid obstacles while moving toward the goal.

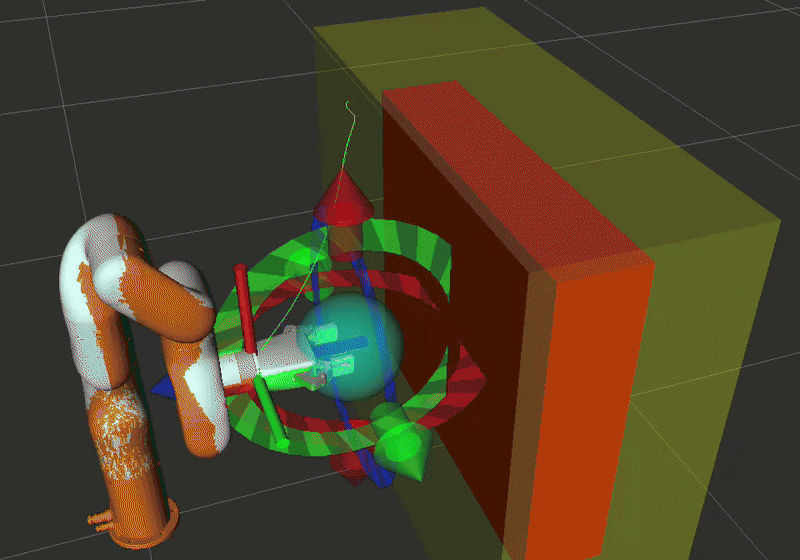

Whole-Body Velocity Planning Visualization Whole-Body Velocity Planning Visualization

Repository Structure

Block Diagram for Architecture

Core C++ Library

The PotentialField class manages the overall potential field representation, and offers path planning methods among others to interact/query the field. The core library has the following features:

  • Obstacle Primitives: Capable of representing primitives and mesh obstacles with signed distance queries via FCL.
  • Robot Kinematics: The PFKinematics module handles URDF parsing, forward kinematics, and Jacobian calculations to understand the robot’s geometry and state and provides the PotentialField class with ObstacleType::ROBOT obstacles to represent the robot’s links in the environment, enabling whole-body obstacle avoidance.
  • IK & Robot Plugins: Abstract Base Classes that provide an interface for inverse kinematics solvers and robot-specific controllers. Users can implement their own derived classes to implement their own robot’s kinematics and control methods.
  • Math Functions: Contains the mathematical implementations for attractive/repulsive forces, RK4 integration, and velocity/acceleration limiting via soft-saturation and rate-limiting.

ROS2 Application Layer

The pfield_manager node is the central hub that bridges ROS to the underlying C++ logic. Internally, it maintains an instance of the PotentialField class and exposes its functionality through a handful of services and topics.

  • Services:
    • PlanPath: Clients can request a end-effector trajectory (position and velocity), and/or a joint trajectory by providing start and goal poses, initial joint states, and planning parameters (tolerance, planning method, and max planning time)
    • ComputeAutonomyVector: Clients can utilize this service to get an instantaneous end-effector velocity command based on the current robot state (end-effector pose or joint angles) and goal pose. This is useful when fusing with real-time teleoperation or higher-level planners.
  • Topics: There are 3 topics a user can publish to in order to update the internal state of the potential field instance:
    • pfield/planning_goal_pose: Accepts a geometry_msgs/Pose message to update the internal potential field instance’s goal pose.
    • pfield/query_pose: Accepts a geometry_msgs/Pose message to update a live query pose to help visualize the potential field’s forces in RViz.
    • pfield/obstacles: The node listens to this topic to update the set of environment obstacles using potential_fields_interfaces/ObstacleArray messages.

Future Work

There are several avenues for future development and improvements the the library and ROS integration, including open-source contributions, feature requests, and bug reports. To highlight some of the most important and impactful ones:

  • Dynamic Obstacles: Currently, dynamic obstacles are able to be tagged as such and ignored, but the library does not yet consider them when evaluating field forces.
  • Self-Collision Avoidance: While the library can represent the robot’s links and support whole-body obstacle avoidance by integrating repulsive forces onto each link into joint velocities, it does not yet support self-collision avoidance. In order to support this, the library would need to expand into a hybrid between configuration-space planning and whole-body velocity planning.
  • Improving Whole-Body Velocity Planning: The current WBV planner uses a simple weighted sum of repulsive forces on each link combined with attractive forces at the end-effector. Future work could explore more advanced optimization-based approaches to better balance obstacle avoidance and goal attraction. Additionally, converting joint torques into joint velocities using robot dynamics could improve performance.
  • Profiling and Optimization: Further profiling and optimization of the core C++ library could yield performance improvements, especially for high-DOF robots or complex environments with many obstacles. There are tons of opportunities for computational improvements regarding potential field evaluation, parallelization, and other lower impact micro-optimizations.
Potential Field Equations

These equations were obtained from the Principles of Robot Motion: Theory, Algorithms, and Implementations textbook and Real-Time Obstacle Avoidance for Manipulators and Mobile Robots, which describes the derivation of the potential equations, how to obtain the gradients, and how to obtain a velocity from the gradients.

In this library, the potential field produces a task-space wrench over the robot’s end-effector pose:

  • Linear force \(\mathbf{F}(q)\) [N] from the translational potential
  • Torque \( \boldsymbol{\tau}(q) \) [Nm] from the rotational potential

This wrench is mapped to a task-space twist \(T(q)\) using constant gains:

\[ \mathbf{v}(q) = k_{lin}\ \cdot \mathbf{F}(q) \\ \boldsymbol{\omega}(q) = k_{ang} \cdot \boldsymbol{\tau}(q) \\ T(q) = \begin{bmatrix}\mathbf{v}(q) \\ \boldsymbol{\omega}(q) \end{bmatrix} \]

with defaults of \(k_{lin} = 1.0,[(\mathrm{m/s})/\mathrm{N}]\) and \(k_{ang} = 1.0,[(\mathrm{rad/s})/\mathrm{Nm}]\).

The potential functions are scalar fields representing potential energy (Newton-meters [Nm]). The gradient of the potential is represented as a force (Newtons [N]). To obtain velocity vectors, we use some parameter \(\left(\zeta \text{ and } \eta\right)\) that acts as an inverse damping coefficient (Newton-seconds / meter [Ns/m]) to convert the force into a velocity (meters / second [m/s]).

Attractive Potential

Attractive Potential is computed using a combined Conical and Quadratic potential function. This approach ensures a constant attractive force at large distances (Conical) to prevent high velocities, while switching to a quadratic behavior near the goal to ensure smooth convergence without chattering. The transition occurs at a distance \(\Gamma\), which can be dynamic based on the environment (e.g., clearance from obstacles) or a fixed parameter.

\[ U_{att}(q) = \begin{cases} \frac{1}{2}\zeta D(q, q_{goal})^2 & D(q, q_{goal}) \le \Gamma \\ \Gamma \zeta D(q, q_{goal}) - \frac{1}{2}\zeta \Gamma^2 & D(q, q_{goal}) > \Gamma \end{cases} \]

The gradient (force) is:

\[ \mathbf{F}_{att}(q) = -\nabla U_{att}(q) = \begin{cases} -\zeta (q - q_{goal}) & D(q, q_{goal}) \le \Gamma \\ -\frac{\Gamma \zeta}{D(q, q_{goal})} (q - q_{goal}) & D(q, q_{goal}) > \Gamma \end{cases} \]

Where:

  • \(\zeta\) is the attractive gain parameter
  • \(D(q, q_{goal})\) is the Euclidean distance between \(q\) and \(q_{goal}\)
  • \(\Gamma\) is the quadratic threshold distance [m] (Also known as \(d^*\) in some literature)

Rotational Attraction

Let \(q_c\) be the current unit quaternion and \(q_g\) the goal orientation. The geodesic distance \(\theta \in [0,\pi]\) is the shortest rotation aligning \(q_c\) to \(q_g\). Define the quaternion difference

\[ q_{diff} = q_c^{*} \otimes q_g, \]

where \(q_c^{*}\) is the conjugate of \(q_c\) and the corresponding unit rotation axis \(\mathbf{u} = \frac{\vec{q_{diff}}}{\lVert\vec{q_{diff}}\rVert}\). The attractive rotational torque is proportional to the geodesic angle and acts about \(\mathbf{u}\):

\[ \boldsymbol{\tau}_{att}(q) = -\,\omega\,\theta\,\mathbf{u} \]

applied only when \(\theta\) exceeds a small threshold. Here \(\omega\) is the rotational attractive gain.

Repulsive Potential

Repulsion increases with proximity to each obstacle and is summed across obstacles. We use the obstacle surface’s signed distance \(d\) and outward normal \(\mathbf{n}_{out}\) at the closest point. Outside the obstacle \(d \ge 0\); inside \(d < 0\) is treated as \(d \approx \varepsilon\) to produce a strong outward push. The gradient of the potential yields the repulsive force

\[ \mathbf{F}_{rep}(q) = \begin{cases} \eta\,\Big(\frac{1}{D(q)} - \frac{1}{Q}\Big)\,\frac{1}{D(q)^2}\,\mathbf{n}_{out} & 0 < D(q) < Q \\ \mathbf{0} & D(q) \ge Q \end{cases} \]

Where:

  • \(\eta\) is the repulsive gain
  • \(Q\) is the influence distance
  • \(D(q)\) is the signed distance magnitude to the obstacle surface
  • \(\mathbf{n}_{out}\) is the outward surface normal at the closest point

Total Potential, Wrench, and Twist

\[ \begin{align} U(q) &= U_{att}(q) + \sum_i U_{rep,i}(q) \\ \mathbf{F}(q) &= -\nabla U(q) \quad\text{(linear force)} \\ \boldsymbol{\tau}_{att}(q) &= -\,\omega\,\theta\,\mathbf{u} \quad\text{(rotational attraction)} \\ \mathbf{v}(q) &= k_{lin}\,\mathbf{F}(q) \\ \boldsymbol{\omega}(q) &= k_{ang}\,\boldsymbol{\tau}_{att}(q) \end{align} \]

Where:

  • \(q\) is the pose (position and orientation)
  • \(\mathbf{F}\) is the net linear force, the negative gradient of the scalar potential
  • \(\boldsymbol{\tau}_{att}\) is the attractive torque toward the goal orientation
  • \(\mathbf{v}\) and \(\boldsymbol{\omega}\) are the linear and angular velocities after mapping with \((k_{lin}, k_{ang})\)

References

[1] Principles of Robot Motion: Theory, Algorithms, and Implementations

[2] Real-Time Obstacle Avoidance for Manipulators and Mobile Robots
